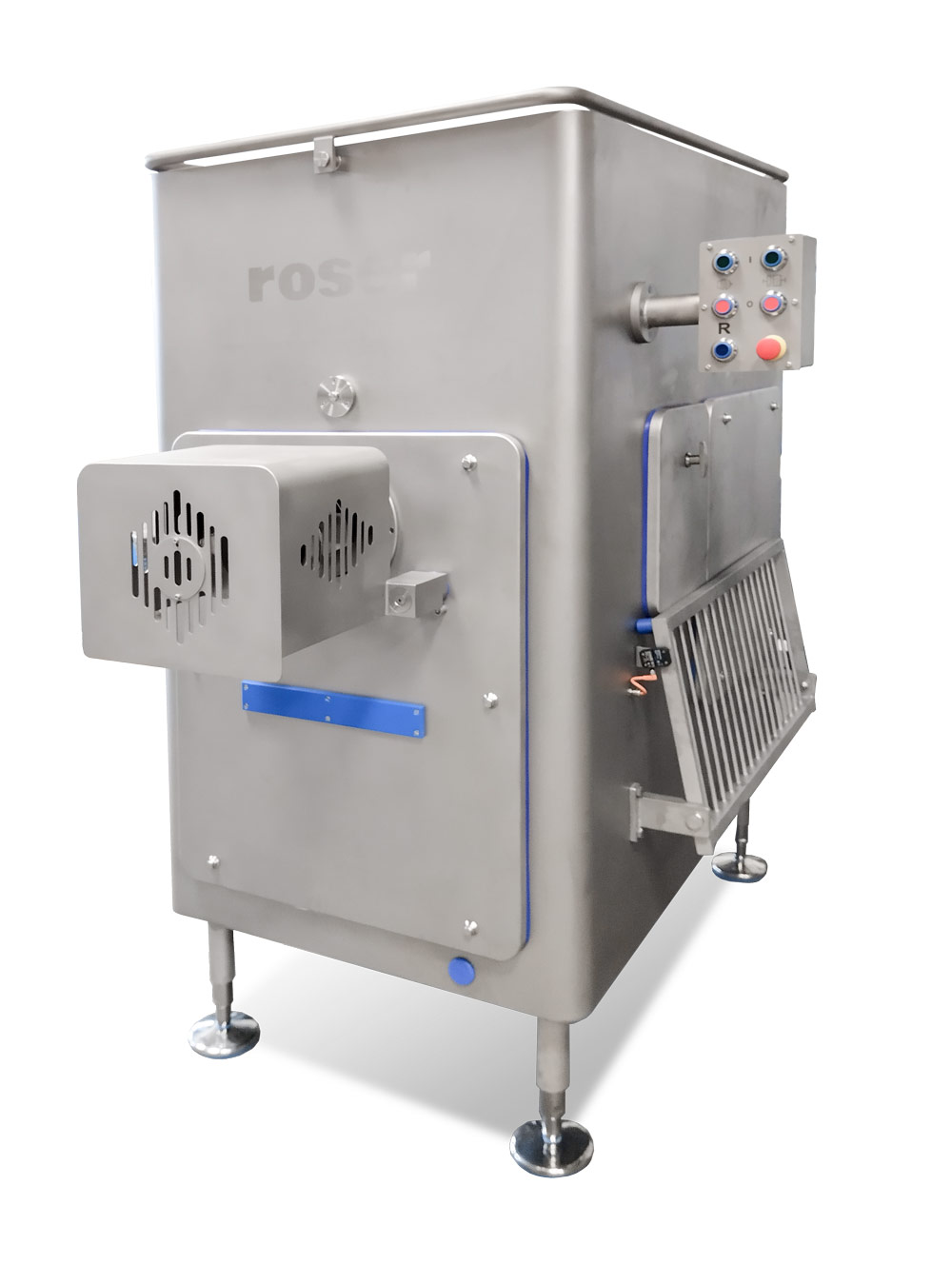

Ultra-fast grinder MASTERGRIND – PM 160/ PM 200
Cod. CC00009153, CC00009154
Ultra-fast industrial automatic grinder for all types of meat. Equipped with an electromagnetic clutch and different speeds between the blade shaft and the grinding screw. It is ideal for grinding ultra-frozen guillotined meat (up to -25°C).
Oversized components suitable for handling tough and prolonged work, achieving high daily production without maintenance issues.
The transmission is achieved through tempered shafts and alloy steel helical gears, treated and ground, mounted on ball and roller bearings, operating submerged in an oil bath for continuous and silent operation.
It features independent feeding and grinding motors, providing greater power and versatility.
see product catalog
Specifications
- Completely made of stainless steel according to CE regulations.
- The discharge height is adapdated for 200 lt rolleys.

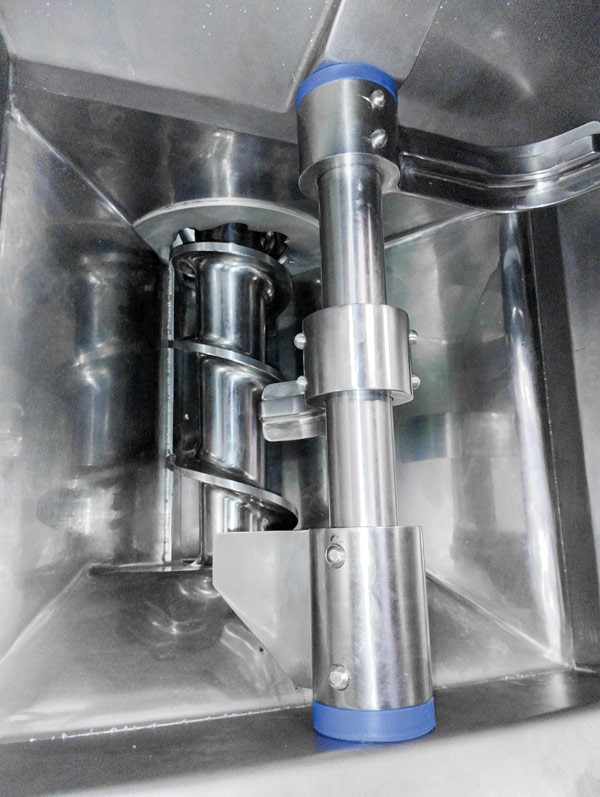

- Automatic feeding screw with 0.75 kW motor.
- It features different speeds between the blade shaft and the grinding screw, allowing for high cutting speed without clogging or increasing the temperature of the meat.
- The grinding unit is started via an electromagnetic clutch to provide maximum power from the beginning.
- Specifically designed for mincing guillotined ultra-frozen meat at any temperature.
- Safety:
- Main power switch.
- Emergency stop button.
- Safety system at the hopper entrance with a peripheral protection bar and electrical disconnection through interlocking.
- Safety guard at the product outlet with electrical disconnection through interlocking.
- Control panel with push-button operation.
- Transmission through hardened shafts and helical gears made of alloy steel, treated and ground, mounted on ball and roller bearings, operating submerged in an oil bath, ensuring continuous and silent operation.
- Silent operation due to trapezoidal transmission from motor to gearbox.
- Blade shaft made of alloy steel, suitable for bending and torsion stresses.
- Extra-hard steel plates and blades with high resistance to wear and breakage, featuring an inclined cutting system.
- Each machine comes with 3 JOPP inclined cutting plates and 3 blades.
| Model | Mouth size | Nominal production | Total power | Screw motor | Hopper capacity |
| PM 160 – CC00009153 | Ø160mm | 3.000 kg/h | 30,75 kW | 30 kW | 300 L |
| PM 200 – CC00009154 | Ø200mm | 5.000 kg/h | 46 kW | 45 kW | 325 L |
