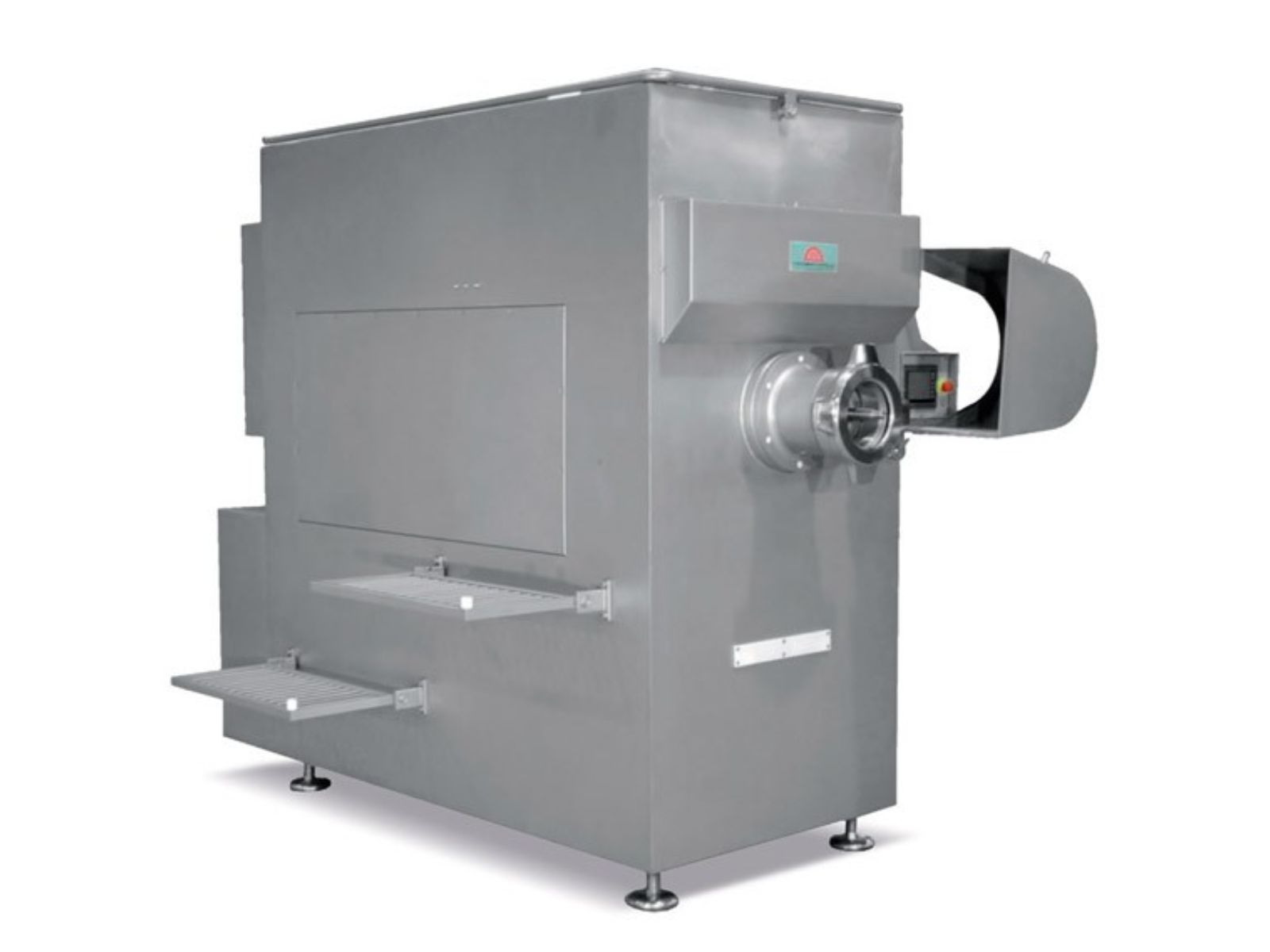

Automatic pre-mixer meat grinder MIXGRIND – MPB 200
Cod. CC00009152
MIXGRIND MBP 200 automatic pre-mixer meat grinder. Variable speed for all types of meat. Specially designed to grind fresh and ultra-frozen meat (up to -25º) that requires pre-mixing to ensure uniformity in the ground product.
Equipped with an electronic speed variation system, independent for the blade shaft and the grinding screw, allowing for infinite combinations of both speeds depending on the product being ground. This optimizes production by using high cutting speeds and achieving perfectly ground product.
The pre-mixer meat grinder features a very solid construction backed by CATO’s guarantee, resulting in high performance with minimal maintenance.
see product catalog
Specifications
- Pre-mixer meat grinder completely constructed of AISI 304 stainless steel according to CE standards.
- Available with different meat grinding plates.
- Production capacity: 5,000 kg/h depending on the diameter of the hole in the last plate.
- Hole plate diameter Ø200mm.
- Independent feeding and grinding motors for greater power and versatility.

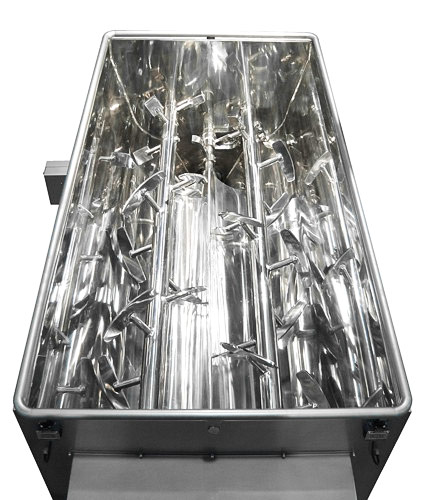

- Equipped with a robust T-shaped paddle system, with 2 paddle shafts rotating towards each other for pre-mixing.
- Plates and blades made of extra-hard steel, highly resistant to wear and breakage.
- Hopper with a capacity of 1,000 liters, suitable for feeding by column elevator (not included).
- The discharge height is adapdated for 200 lt rolleys.
- Minimal maintenance and easy to use.
- Specially designed to grind all types of fresh and ultra-frozen (-20° C) guillotined meat, requiring pre-mixing to ensure uniformity in the ground product.
- Independent feeding and grinding motors for greater versatility.
- Variable and independent speeds for the blade shaft and grinding screw. This allows for the use of multiple speed ranges to optimize grinding.
- Features a robust T-shaped paddle system: 2 paddle shafts rotating towards each other for pre-mixing.
- Lever for comfortable extraction of the grinding screw.
- Removable feeding screw for easy and effective cleaning of corners.
- Transmission via tempered shafts and helical gears made of alloy steel, treated and ground, mounted on ball and roller bearings, ensuring continuous and quiet operation.
- Blade shaft, plates, and blades made of special steel with high resistance to bending, torsion, wear and breakage.
- Plates and blades made of extra-hard steel, highly resistant to wear and breakage.
Features
- Equipped with:
- 22 kW motor for the blade shaft, powered by an electronic speed variator.
- 30 kW motor for the feeding blade shaft.
- 0.75 kW motor for the feeding screw.
- 2 motors of 2.2 kW each for the mixing-kneading paddle shafts.
- Safety:
- Main power switch.
- Emergency stop button.
- Safety system at the hopper entrance with a peripheral protection bar and electrical disconnection by interlocking.
- Safety guard at the product outlet with electrical disconnection through interlocking.
- Connection power: 58 kW.
